USB Card reader
Product Name:
USB Card reader
:
:
:


Product Description

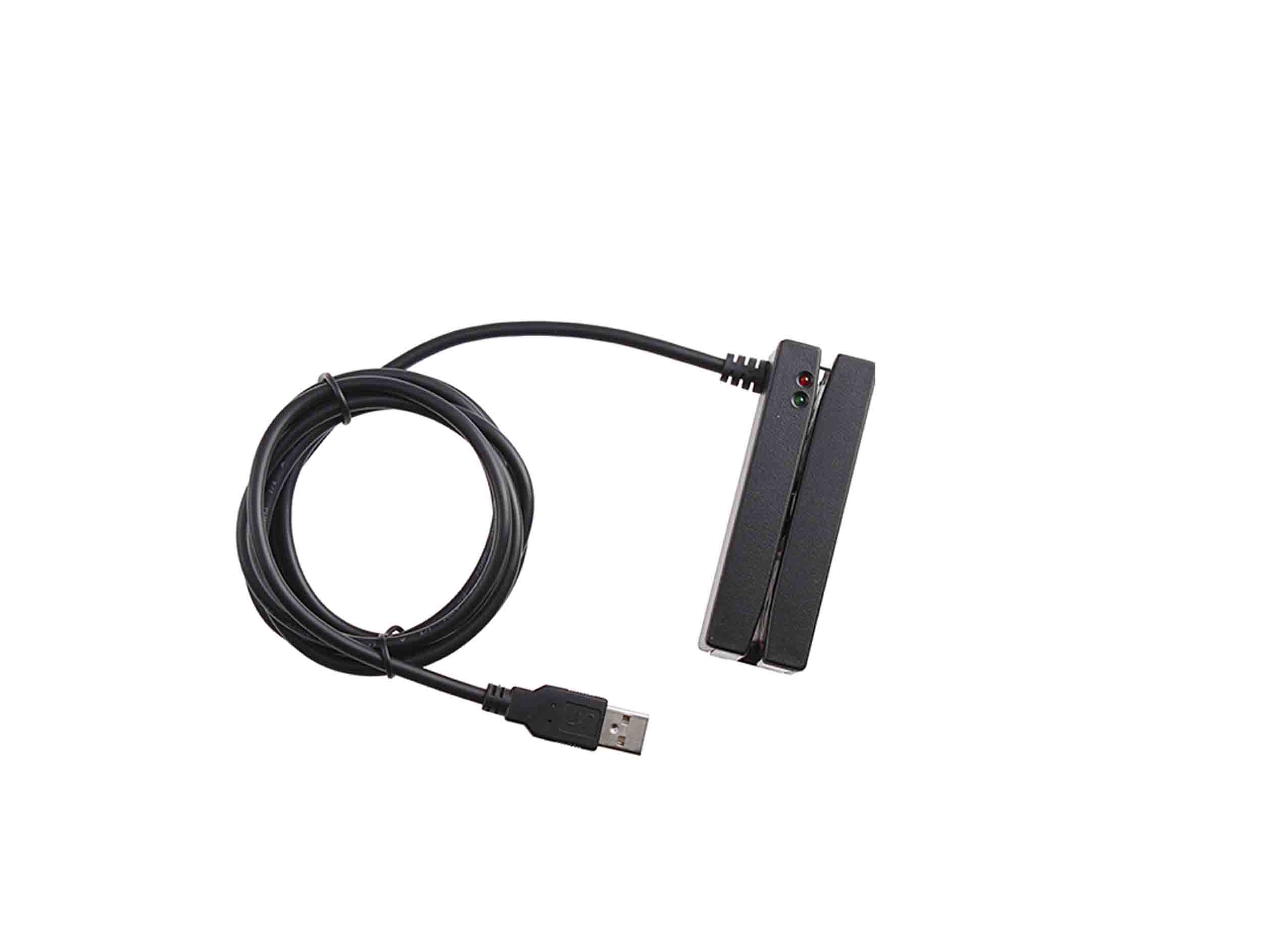

NW-201C Tracks Magnetic Stripe Credit Card Swipe Reader

 NW-201C is a card swipe reader in small size with low power consumption and strong compatibility. It can identify magnetic cards with different recording density made according to different standards. It supports USB,RS232 and PS2 keyboard  interfaces.
 Power supply: DC5V.

Ÿ     Small in size, easy to handle

Ÿ     Bi-direction reading capability

Ÿ     Reads up to 3 tracks of data with a single swipe in either direction

Ÿ     Reads High and  Low coercivity magnetic stripe cards

Can read ISO7811/7812 and other data format

Ÿ    1,000,000 Card swipe long life read head

Ÿ     2 LED for status

Ÿ     USB interface, RS232 interface and PS2 interface optional

Ÿ     Power is soured from PC keyboard

SPECIFICATIONS

Model

NW-201C





Standard

ISO7811/7812





Track Position

ISO1(1ATA)

ISO2(ABA)

ISO3MINTS)

Recording Density

210BPI

75BPI

210BPI

Capacity

79 characters

40 characters

107 characters

Power Supply

DC+5V±5%

Electric Current

65mA(max)

Head Function

Read 1.5mm

Card Thickness

PVC 0.76±0.08mm

Operating Speed

15120cm/sec

Identification effective rate

More than 99.5%

Interface

USB/RS232/PS2 interface

Operating Location

Indoors

Head Life:

800,000 card passes

Temp & Hum for Operating:

-20°C70 °C, 090%RH

Temp & Hum for Storage

-30°C70 °C, lower 90%RH

Weight:

Approx 82g
