Guangzhou Niceway Electronic Technology Co., Ltd

* Using top quality industrial motherboard

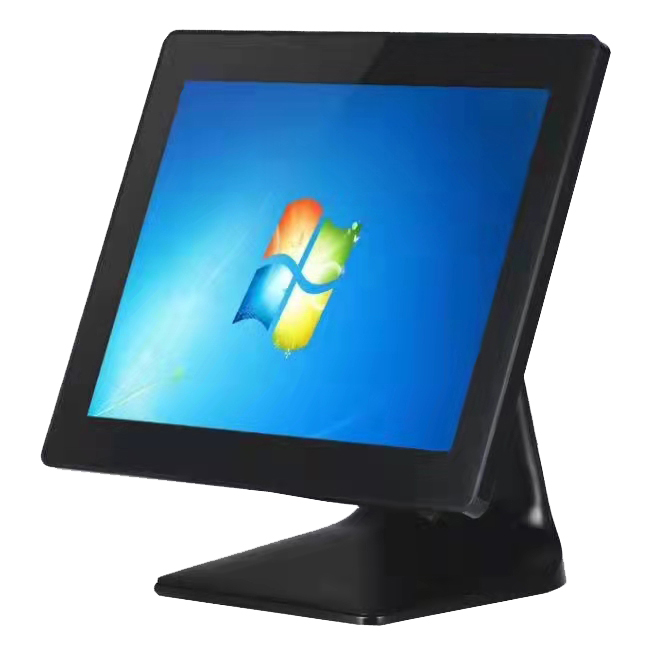

* 15-inch TFT LED Flat Touch Monitor, 1024 x 768,32bit colour

* Sensitive capacitive touch screen, the click life can reach 3.5 million times.

* Excellent personalized design adapt to any environment

* Modular design & convenient maintenance

Item

NW-1510

Mainboard

Intel® Celeron® Processor J1800 1M Cache 2.41 GHz

Processor

Integrated Bay Trail-D Celeron J1800 2.41 GHZ

Chipset

Bay Trail-D Celeron J1800 2.41GHZ

Memory

1 DDR 533/667 Slot, 2GB

Graphical Display

Integrated Intel GMA950, Support DirectX9.0

Outer I/O Interface

RJ-45 LAN Port x 1; PS/2 Keyboard Port x 1

VGA Port x 1; USB2.0 x 6

Serial Port x 2; HDMI port x1

DC Power Port x 1

Video Memory

Max Support 224MB Dynamic Video Memory

HDD

32G SSD

Customer display

(12.1" or 15" LED display/VFD/LED 8N optional)

Monitor

15" TFT LED Flat Touch monitor

Brightness

250cd/m2

Resolution

1024x768

Touch Screen

Top quality five line resistance touch screen

Visible Angle

Horizontal: 140, Vertical: 130

Operation Temperature

0°C to 40°C

Storage Temperature

-20°C to 40°C

Power

DC 12V Outer Adapter Input
