Guangzhou Niceway Electronic Technology Co., Ltd

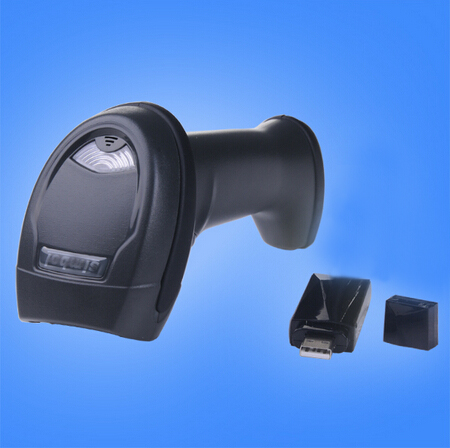

NW-150M Wireless barcode scanner

Features:

1. Large Storage; maximum storage reaches 32000 codes;

2.Maximum scan 128bit barcode, memory 32M .

3. Scan storage and total scans counting.

4. Long communication distance; 50-100m indoor and at least 150m outdoor.

5. 433MHz Wireless wifi receiver ,High anti-interference

6. Supporting network construction; 1 base to 254 readers or 15 bases to 1 reader; ID display.

7.Repeated code detection; no messy-code programmed.

8.Free of charging trouble; battery lasts 3-5 hours after full charged; lasting working more than 12 hours.

9.Long lifespan battery; rechargeble battery 2600mAH .Standby zero power consumption technology more than 650hours in non-working.

10.Non ON/OFF ,use directly ,improve working efficiency.

11.Intelligentize Data up-loading function,breakpoint continuingly support ,up-loading newest data .

Optical

Description

Light Source

Visible laser diode 650nm

Burst mode

Manual

Scanning mode

single line

Scanning rate

300scans/second

Resolution

≥3mil

Print of contrast

≤30%

Scan error rate

1/50million

Input Voltage

DC5V

Power

100mA operating

Current

20mA Operating

Standby Current

<20uA

LUX

3000-12000Lux

Depth of field

5mm-630mm

scanning angle

±60° ±65° ±42°(left-right/AF-BF/Turn)

Transimission distance

Opening Field about 1.5km ,50-300m indoor

Decoding Capacity

UPC/EAN/JAN ,UPC/EAN with Supplementals,UCC/EAN 128,

CODE 39,MSI,CODE 11,CODE 39 FULL ASCII,CODE 39

TriOptic

Charge

≥3hours

Housing Material

ABS+PC

battery working

12 hours per full charge

Temperature

0°c-50°c(operating) -40°c-60°c(storage)

Setting type

Manual (scanning setting code )

Laser safty

EN60825-1,class 1

EMC

EN55022,EN55024

Electrical safty

EN60950-1

IP

IP52

Drops

3M drops to concrete
