Features:

● New decoding chip to interpret various 1D codes/QR codes

● USB Bluetooth  receiver, plug and play, simple setup, fast use

● Wireless transmission distance reaches 30-50 meters (open space)

● 512,000 characters can be stored in the offline/counter storage mode

● Directly transmit Chinese QR code

● Scanning WeChat, Alipay 1D code / QR code

Application areas

Mainly used in the fields of business super, monopoly, logistics, warehousing, payment, ticket inspection, etc.

Specification

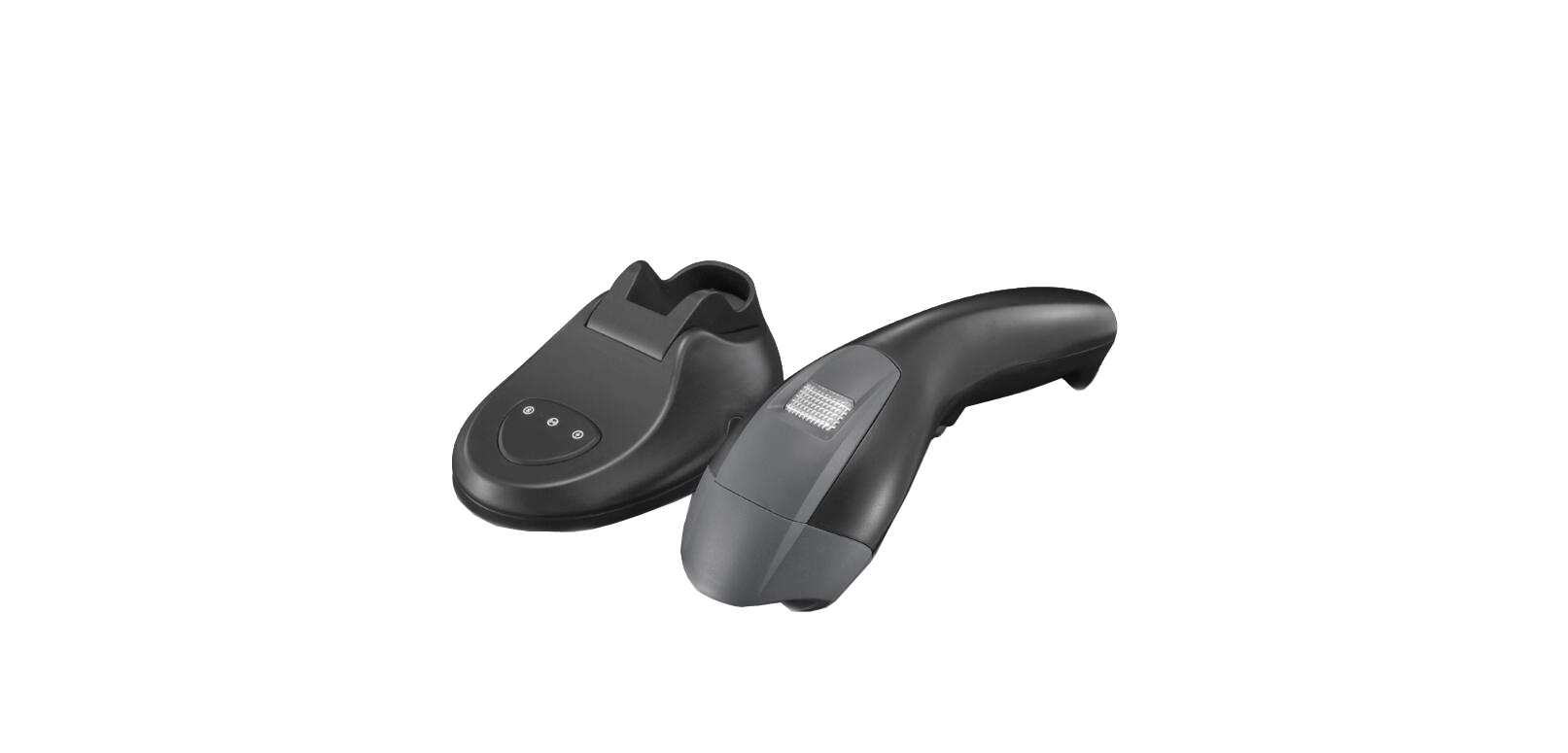

Model Number

NW-380BT

Performance Parameters

Light Sources

617nm LED Aimer,White LED

Supported Symbologies

1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128,Codabar，Interleaved

2 of 5, ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,GS1 Composite

Code,Code 11,Industrial 25,Standard 25,Plessey, Matrix 2 of 5.

2D:QR Code, Data Matrix, PDF417,Aztec, Maxicode，HanXin Code.

Scan Type

Image CMOS

Resolution

EAN13 50-200mm(13mil)；QR  25-240mm(20mil)；

Scan Method

Manually/Continuous/Automatic inductive scanning

Scan angle

Yaw ±60°, Rotation 360°, Pitch ±60°

Contrast

≥20%

Precision

≥5mil

Depth of scan field

EAN13 50-200MM(13MIL);QR 25-240MM(20MIL);PDF147 30-

130MM(6.67MIL)

Error Rate

Less than 1/5 million

Interface

USB-HID,USB-COM

Wireless Communication

Pairing dedicated receiver: 2.4G communication Pairing Mobile Bluetooth

Devices: Bluetooth BLE 4.0

Wireless transmission distance

30-50 meters (open distance)

Storage Mode

Offline Storage Mode: When the scanner exits the connection range, the data is automatically stored.Storage capacity is 512000 characters.

Inventory storage mode: Scanner can enter inventory mode, storage capacity is 512000 characters.

Pairing Mode

One to One: One Scanning Gun Pairs One Receiver;One scanner paired with a

Bluetooth mobile device

Receiving End

Dedicated Bluetooth U Disk Receiver,,Android、IOS Mobile devices.

Physical Parameters

Dimensions

102mm*71mm*177mm

Weight

253g

Material

ABS+PC

Cable Length

0.6M

Environmental Parameters

Operating Temperature

-20℃~50℃

Storage Temperature

-40℃~70℃

Ambient lighting

0~100000LUX

Relative Humidity

5%~95%（Non-condensing）

Electrical Parameters

Voltage

DC5V±5%

Operating Current

when not scanning code ≥26mA;when scanning code ≥28mA

Standby Current

0mA(Standby is to cut off battery power)

Battery Working Time

6h

Charging Time

3.5h

Lithium battery

18650 1400mA

Charging Model

contact charging
