2D Barcode Scanner

Product Name:

2D Barcode Scanner

Product Description

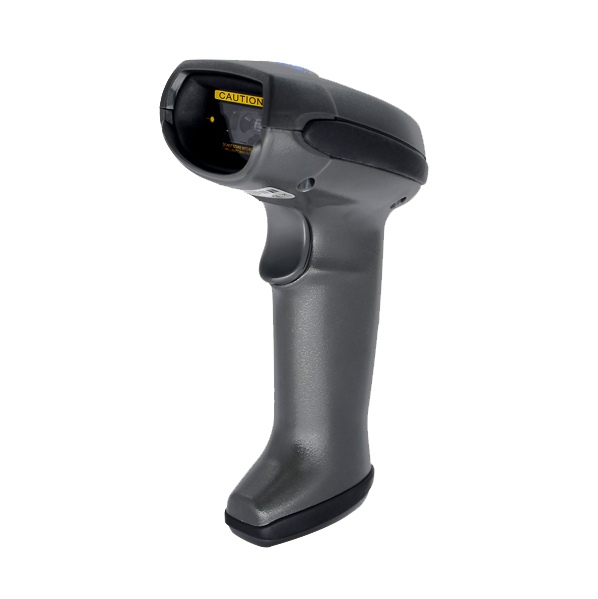

Models:NW-382D 2D barcode scanner

Demensions:176(L)*100(H)*72(W)mm

Details :

1.32Bit-CPU

2.Light source: white LED 6500K&Windows 625nm LEDS

3.Depth of scanning field :39°(H)x 25°(V)

4.RS232,HID USB,KB Interfaces Supported

5.Printe Contrast:25% minimum reflective difference

6.Weight:300g

7.Cable Length:2m

8.CE ,ROSH

Physical	Description
Dimensions	176cm100cm72cm
Weight	300g
Power	5V DC ±10%@450mA
Performance
Light Source	Aimer:617nm LED White 6500K Illumination:625nm LEDs
Field of View:	39°(H) x 25°(V)
Roll	0-360°
Pith	±65° or greater
Yaw	±60° or greater
Print Contrast	25% minimum reflective difference
Decode Capability
1D	Chinese2of5,GS1databarVariants,Korean 3 of 5,ISBT Concat
2D	PDF417,MicroPDF417,CompositeCodes,TLC-39, Data Matrix,Maxicode ,QR code ,Micro QR,Aztec
Motion Tolerances	Up to 25in/63.5cm per second
Interfaces Supported	USB:HID Keyboard(default mode), COM Port Emulation Rs232:standard
Minimum Resolution:	SR:Code 39 4.8mil;UPC 60% 5mil,PDF417 5mil,Datamatrix 7.5mil
Regulatory
Electrical Safety	UL60950-1 2nd ed,CSA C22.2 No.60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed
LED safety	IEC/EN60825-1:2001.IEC/EN62471:2006
EMI/RFI:	FCC Part 15 class B,ICES-003 Class B,EN55022 Class B,EN55024
User Environment
Operating Temp	0°C to 40°C
Storage Temp	-40°C to 70°C
Humidity	5% to 95% non-condensing
Drop Spec	Withstands multiple 6ft. Drops to concrete
Ambient light Immunity	Immune to normal indoor lighting up to 1600Lux,Immune to sunlight up to 86,000Lux
