Features:

● New decoding chip to interpret various 1D codes/QR codes

● Plug and play, easy to set up, and can be used quickly with other office equipment

● Scan WeChat, Alipay barcode

● Support lightning billing

● Wire life is longer lasting

Application areas:

Mainly used in the fields of business super, monopoly, logistics, warehousing, payment, ticket inspection, etc.

Specification:

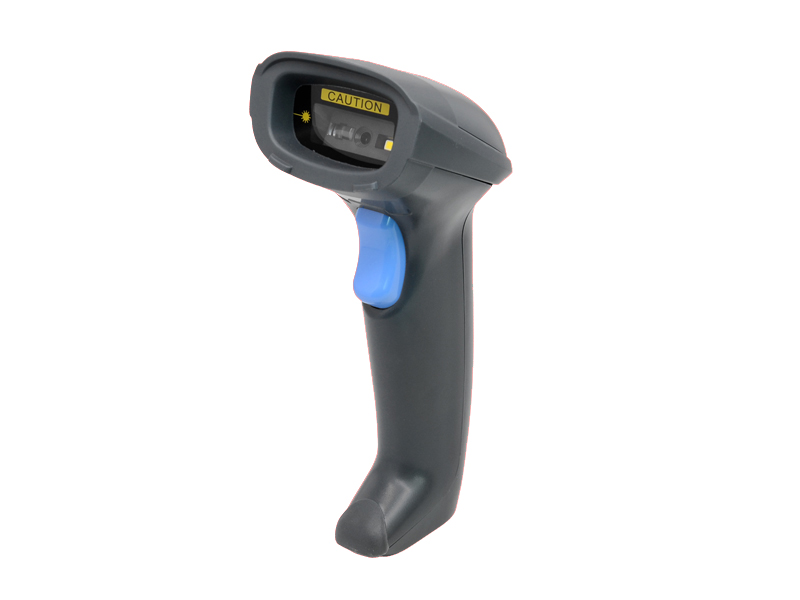

Model Number

NW-801D

Performance Parameters

Light Sources

617nm LED Aimer,White LED

Supported Symbologies

1D:Codebar,  Code11 Code39 Code93

UPC/EANCode128, EAN-128, Interleaved  2 of 5, Matrix

2 of 5,MSI Code, Industrial 2 of 5, GS1 Databar.

2D:QR Code, Data Matrix, PDF417.

Scan Type

Image COMS

Scan Method

Manually/Contnuous/Automatic inductive scanning

Scan Angle

Yaw 60°,Rotation 360°,Pitch 60°

Precision

≥5mil

Depth of scan field

6-220mm

Error Rate

Less than 1/5 million

Interface

USB-HID,RS232

Physical Parameters

Dimensions

83mm*70mm*172mm

Weight

130g

Material

ABS+PC

Cable Length

1.8M

Environmental Parameters

Operating Temperature

-20℃~60℃

Storage Temperature

-40℃~70℃

Relative Humidity

5%~95%（Non-condensing）

Electrical Parameters

Voltage

DC5V±5%

Current

135mA(Operating)
