1D Omni-directional Multiple lines laser barcode scanner
Product Name:
1D Omni-directional Multiple lines laser barcode scanner
:
:
:


Product Description

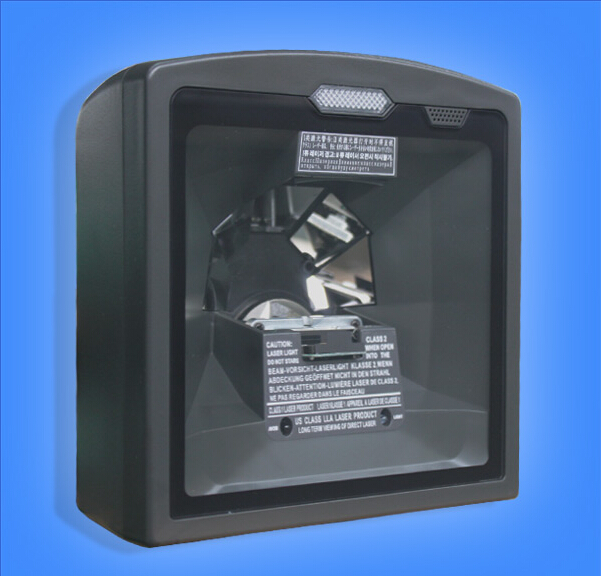

NW-863P Omni-directional laser barcode scanner

Features:

1)Support both omni-directional and 20-line scan

2)20 laser scan line make the scan rate up to 1500 scan/second



3)self-developed decoder chip and high performance tablet pc barcode scanner



4)hardware decode technology omni-directional tablet pc barcode scanner

5)Support Keyboard, RS-232, USB interface port.

6)Support more than 20 countries' keyboard output.

Optical

Description

Light source

High performance laser diode 650nm

Beeper Operation

Programmable tone & volume

CPU

32Bit hardware decoder

Scanning mode

20scan lines ,5 directional scanning

Scan type

Omnidirectional and 20 line scanning

Visual Indicators

Two color LED (blue & red)

Depth of Field

0-220mm for 0.33mm UPC/EAN 100%

Interface

USB.RS232,Keyboard wedge

scanning speed

1500scans/second

scanning lines

20lines

Minimum resolution

0.127mm(5mil)@Code 39, PCS=90%

Printe contrast

>30%(UPC/EAN 100%)

Physical



Dimemsion

155*150*75mm

weight

680g

cable length

2M

Electrical



Input Voltage

5VDC ± 10%

Operating current

270mA

Standby power

1.0watts

Safety



Laser Class

CDRH class II,IEC 60825-1 class 1

EMC

CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Environmental



Operating temperature

0 ° C~50 ° C(32 ° F-122 ° F)

Operating humidity

5%~95%relative humidity, non-condensing

Storage temperature

20 ° C~+60 ° C(-4 ° F-140 ° F)

Light Levels

4500Lux

Drops

Designed to withstand 1.0m drops









Decode capability







UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8& JAN 13 ISBN/ISSN, EAN,Code 39, Code 39 with full ASCII, Code 93, Code 128,Codabar (NM7),trioptic Code

39, MSI/Plessy, Interleaved 2 of 5 (ITF), Addendum 2 of

5,IATA Code,China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5,discrete2 of 5,Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS ariants.
