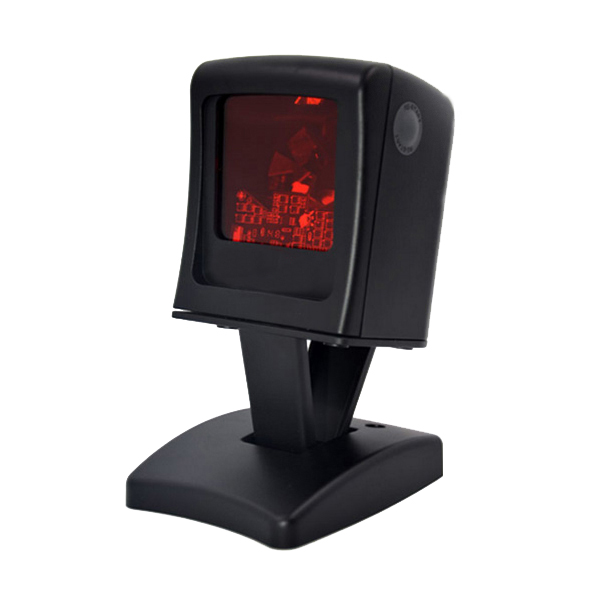

Features:

1)Support both omni-directional and single-line scan

2)20 laser scan line make the scan rate up to 1500 scan/second

3)self-developed decoder chip and high performance laser barcode scanner

4)hardware decode technology omni-directional barcode scanner

5)Support Keyboard, RS-232, USB interface port.

6)Support more than 20 countries' keyboard output.

Optical

Description

Light source

High performance laser diode 650nm

Beeper Operation

Programmable tone & volume

CPU

32Bit hardware decoder

Scanning mode

20scan lines ,5 directional scanning

Scan type

Omnidirectional and single line scanning

Visual Indicators

Two color LED (blue & red)

Depth of Field

0-220mm for 0.25mm UPC/EAN 100%

Interface

USB.RS232,Keyboard wedge

scanning speed

1000scans/second ,75 scan lines per second- single line

scanning lines

20lines

Minimum resolution

0.127mm(5mil)@Code 39, PCS=90%

Printe contrast

>30%(UPC/EAN 100%)

Physical

Dimemsion

74*78*88.2mm

weight

450g

cable length

2M

Electrical

Input Voltage

5VDC ± 10%

Operating current

270mA

Standby power

1.0watts

Safety

Laser Class

CDRH class II,IEC 60825-1 class 1

EMC

CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Environmental

Operating temperature

0 ° C~50 ° C(32 ° F-122 ° F)

Operating humidity

5%~95%relative humidity, non-condensing

Storage temperature

20 ° C~+60 ° C(-4 ° F-140 ° F)

Light Levels

4500Lux

Drops

Designed to withstand 1.0m drops

Decode capability

UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8& JAN

13 ISBN/ISSN, EAN,Code 39, Code 39 with full ASCII, Code

93, Code 128,Codabar (NM7),trioptic Code 39, MSI/Plessy, Interleaved 2 of 5 (ITF), Addendum 2 of 5,IATA Code,China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of

5,discrete2 of 5,Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS

ariants.
