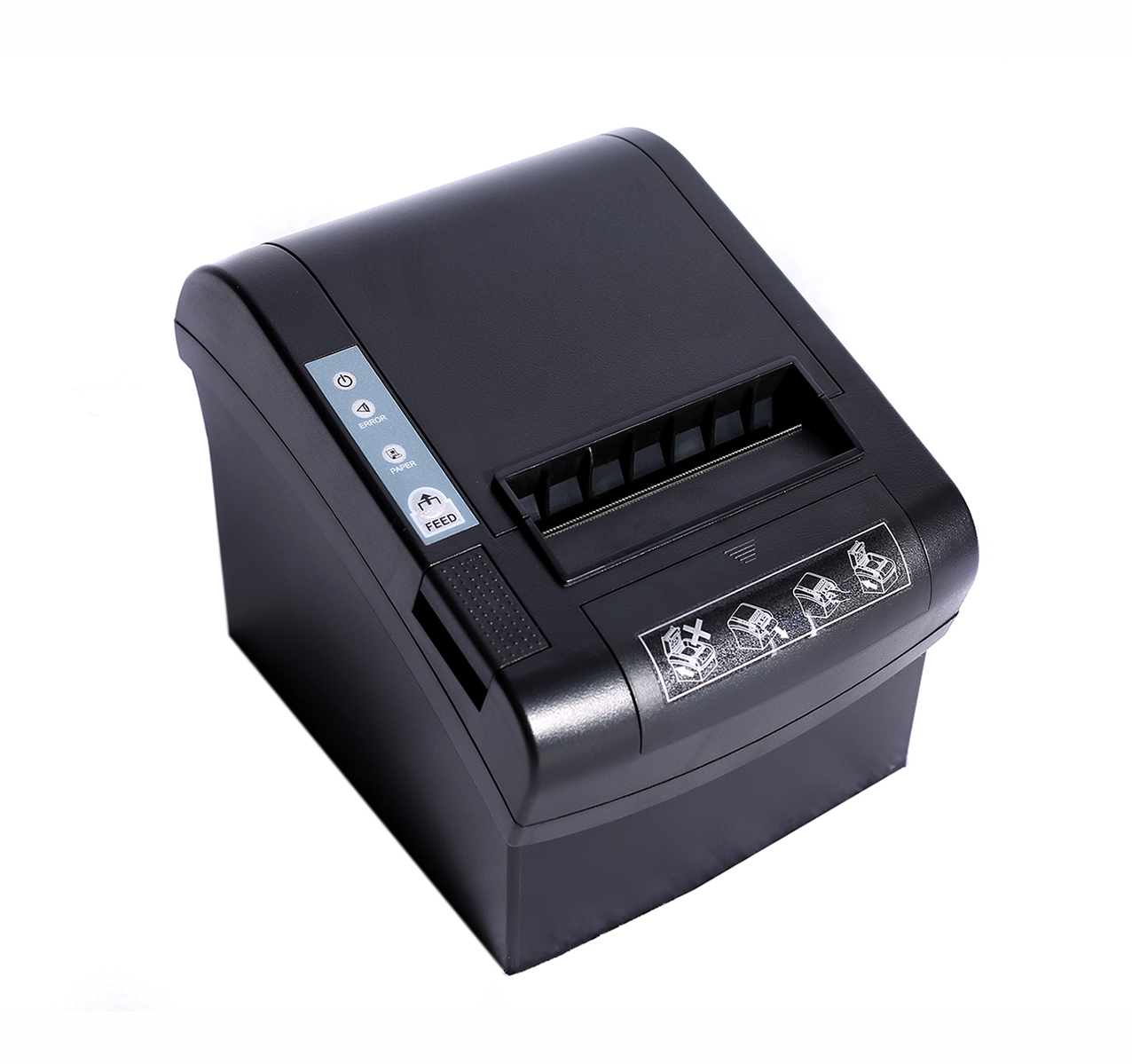

80mm Thermal Printer

Product Name:

80mm Thermal Printer

Product Description

Main features:

• Fast printing of text and images

• Long lasting auto-cutter up to 1.5million cuts

• Friendly utilities,virtual usb or usb hid setting by utilities

• Support 8 kinds of different paper width(Option)

• Support wall mounting(Option)

Model		NW-801
Printing	Print Method	Direct Thermal
	Print Speed	260mm/s
	Resolution	576dots/line or 572dots/line
	Printing Width	72mm
	Paper separator(option)	48mm/52mm/56mm/64mm/68mm/76mm/80mm
	Interface	serial+usb+lan
	Page Mode	Support
Memory	Input buffer	4M
	NV Flash	256kbytes
Fonts	Font A	12x24
	Font B	9x17
	Chinese	GB18030,BIG5 24x24dots
	Japanese/Korea	Support
	User-defined	Support
Barcode	1D	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
	2D	PDF417, QR code,Datamatrix
Detection	Sensors	Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional)
Power Supply	Input	AC 100V-240V 50/60HZ
	Output	DC 24V/2.5A
Paper	Paper Type	Thermal Receipt Paper
	Paper Width	48mm/52mm/56mm/64mm/68mm/76mm/80mm
	Paper Thickness	0.06~0.08mm
	Roll Dia	Max. Ø 83 mm
	Paper Load	Easy paper loading
	Paper Cut	Manual tear or Auto-cutter
Physical Characteristics	Working Condition	0°C~45°C, 10%~80%RH
	Storage Condition	-10°C-60°C,10%~90%RH
	Dimensions	184(D)x143(W)x148(H)mm
	Net weight	2.34kg	Gross weight	2.5kg
Reliability	Printing head	150KM
	cutter	1.5million
Accessories		data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option)
Packing	Individual box	Dimension 25X20X16cm(LXWXH）	1unit/carton
	Master carton	Dimension 63X27X35cm(LXWXH）	6units/carton
OS	Emulation	ESC/POS
	Driver	Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS
	SDK	Android, IOS
