Main features:
• Fast printing of text and images
• Long lasting auto-cutter up to 1.5million cuts
• Friendly utilities,virtual usb or usb hid setting by utilities
• Support 8 kinds of different paper width(Option)
• Support wall mounting
|

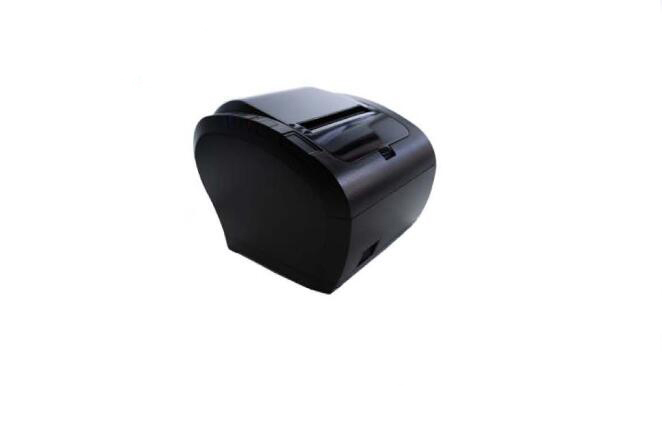

Model |
|
NW-306 |
|
Printing |
Print Method |
Direct Thermal |
|
Print Speed |
260mm/s |
|
|
Resolution |
576dots/line or 572dots/line |
|
|
Printing Width |
72mm |
|
|
Paper separator(option) |
48mm/52mm/56mm/64mm/68mm/76mm/80mm |
|
|
Interface |
RS232C+USB+Lan |
|
|
Kitchen function |
Power,Paper,Erro |
Support |
|
LED light with beeper |
Without |
|
|
Hanging device |
Equipped |
|
|
Memory |
Input buffer |
256kbytes |
|
NV Flash |
256kbytes |
|
|
Fonts |
Font A |
12x24 |
|
Font B |
9x17 |
|
|
Fonts |
Chinese |
GB18030,BIG5 24x24dots |
|
Japanese/Korea |
Support |
|
|
User-defined |
Support |
|
Barcode |
1D |
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8） /CODE39/ITF/CODABAR/CODE93/CODE128 |
||
|
2D |
QR code |
|||
|
Detection |
Sensors |
Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional) |
||
|
Power Supply |
Input |
AC 100V-240V 50/60HZ |
||
|
Output |
DC 24V/2.5A |
|||
|
Paper |
Paper Type |
Thermal Receipt Paper |
||
|
Paper Width |
48mm/52mm/56mm/64mm/68mm/76mm/80mm |
|||
|
Paper Thickness |
0.06~0.08mm |
|||
|
Roll Dia |
Max. Ø 83 mm |
|||
|
Paper Load |
Easy paper loading |
|||
|
Paper Cut |
Manual tear or Auto-cutter |
|||
|
Physical Characteristics |
Working Condition |
0°C~45°C, 10%~80%RH |
||
|
Storage Condition |
-10°C-60°C,10%~90%RH |
|||
|
Dimensions |
191(D)x146(W)x12.9(H)mm |
|||
|
Net weight |
1.94kg |
Gross weight |
2.14kg |
|
|
Reliability |
Printing head |
150KM |
||
|
cutter |
1.5million |
|||
|
Accessories |
|
data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option) |
||
|
Packing |
Individual box |
Dimension 25X20X16cm (LXWXH） |
1unit/carton |
|
|
Master carton |
Dimension 63X27X35cm (LxWxH） |
6units/carton |
||
|
OS |
Emulation |
ESC/POS |
||
|
Driver |
Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS |
|||
|
SDK |
Android, IOS |
|||
|
|
|
|
