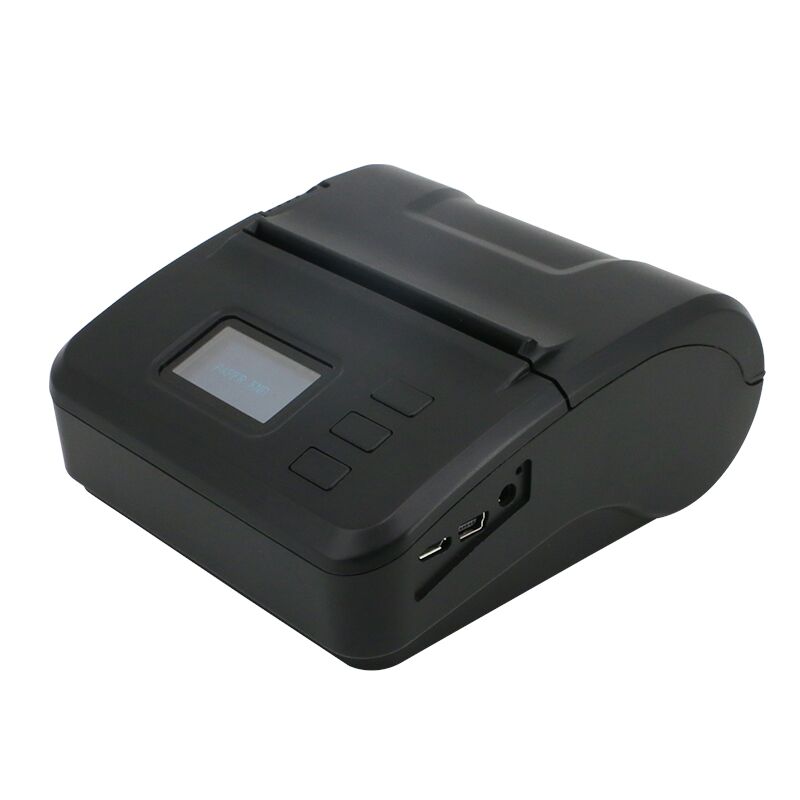

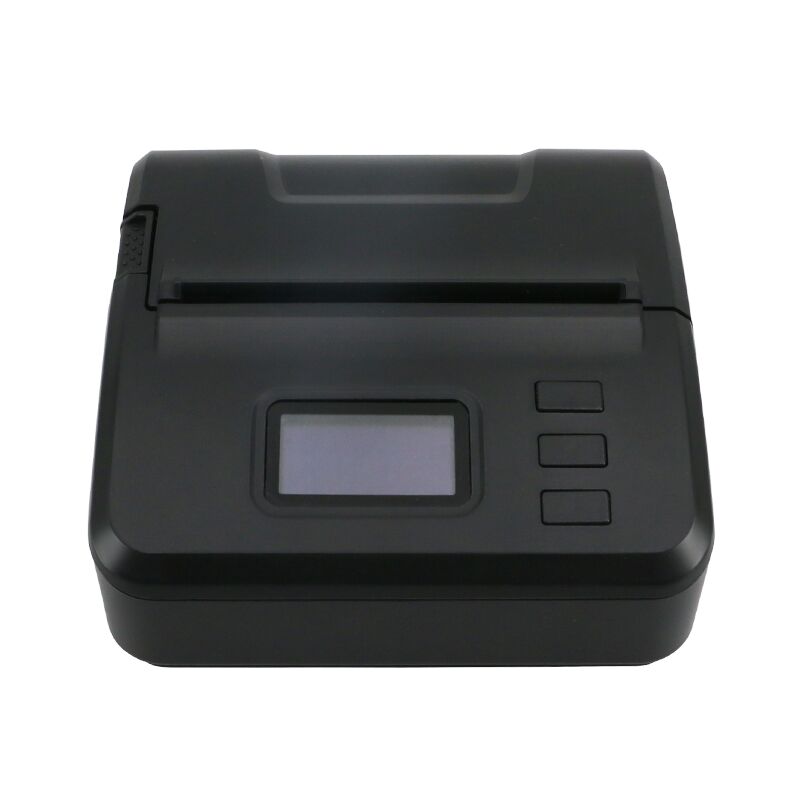

80mm portable thermal receipt printer

Product Name:

80mm portable thermal receipt printer

Product Description

Main features:

Main features:
• Thermal receipt&label all in one.(label option)

• Support Android&IOS.

• Support charge on car.

• Support 58/80mm paper width.

• Support black label orientation.

Model		NW-ZM01
Printing	Print Method	Direct Thermal
	Print Speed	80mm/s
	Resolution	203 dpi（8 dots/mm）
	Printing Width	72mm
	Paper separator(option)	48mm/52mm/56mm/64mm/68mm/76mm/80mm
	Interface	SERIAL+USB+WIFI or SERIAL+USB+BT
Memory	Input buffer	256kbytes
	NV Flash	2M
Fonts		Alphanumeric; Simplified Chinese, Traditional Chinese; 35 International Character Sets
Barcode	1D	UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, ITF, CODE 128 , CODE 93
	2D	QR code ,PDF417
Detection	Sensors	Paper out detector, cover open detector, black mark detector,gap detector
Power Supply	Input	AC 100 ~ 240 V, 50/60Hz
	Output	DC 5V, 1A
	Battery	7.4V rechargeable Li-ion battery, 2000mAh
Paper	Paper Type	Thermal receipt paper or Thermal Label paper
	Paper Width	48mm/52mm/56mm/64mm/68mm/76mm/80mm
	Paper Thickness	0.053 ~ 0.15mm
	Roll Dia	Max. Φ50 mm (O.D)
	Paper Load	Easy paper loading
	Paper Cut	Manual tear
Physical Characteristics	Working Condition	-2℃ ~ 52℃, 10% ~ 85% R.H, no-condensing
	Storage Condition	-20 ~ 60℃, 5 ~ 90% R.H, no-condensing
	Dimensions	115(L)×110(W)×50(H) mm
	Net weight	0.36KG	Gross weight	0.5KG
Reliability	Printing head	50 km
	cutter	/
Accessories		data cable,power adaptor,power code,paper roller,CD,manual,paper separator
Packing	Individual box	Dimension 23X15X6.5cm(LXWXH）	1unit/carton
	Master carton	Dimension 48X32X34cm(LXWXH）	20units/carton
OS	Emulation	ESC/POS
	Driver	Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS
	SDK	Android, IOS
