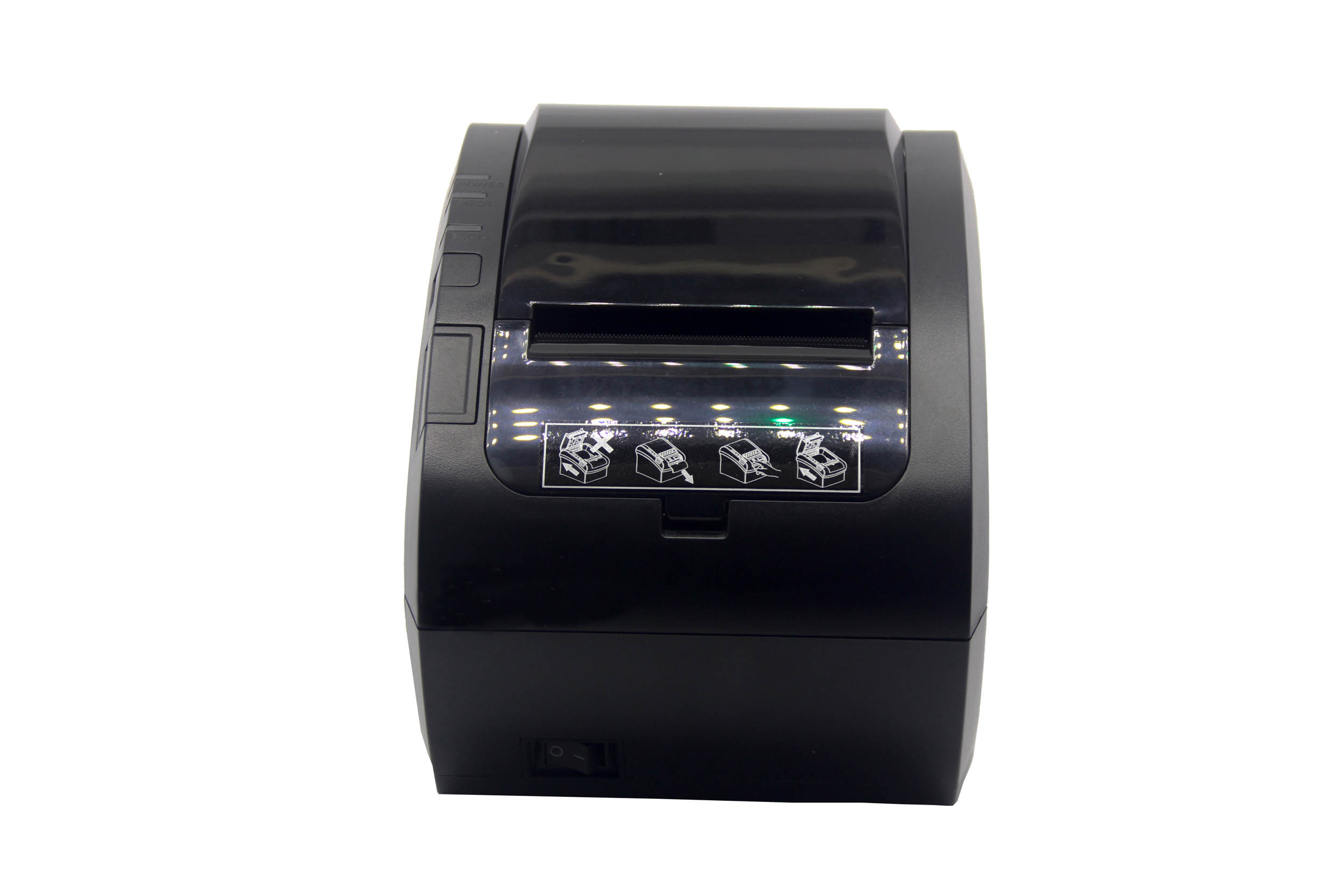

Economical thermal printer
Product Name:
Economical thermal printer
:
:
:


Product Description


























M
ain features:

Fast printing of text and images

Long lasting auto-cutter up to 1.5million cuts

Friendly utilities,virtual usb or usb hid setting by utilities

Support 8 kinds of different paper width(Option)

Support wall mounting(Option)





Model





NW-301



NW-302

















Printing

Print Method

Direct Thermal

Print Speed

260mm/s                                                             200mm/s

Resolution

576dots/line or 572dots/line

Printing Width

72mm

Paper separator(option)

48mm/52mm/56mm/64mm/68mm/76mm/80mm

Interface

RS232C+USB+Lan

RS232C+USB

Page Mode

Support





Kitchen function

Power,Paper,Erro

Support

LED light with beeper

Without

Hanging device

Equipped





Memory

Input buffer

4M                                                                      64kbyte

NV Flash

256kbytes

256kbytes











Fonts

Font A

12x24

Font B

9x17

Chinese

GB18030,BIG5 24x24dots

Japanese/Korea

Support

User-defined

Support





Barcode

1D

UPC-A/UPC-E/JAN13EAN13/JAN8EAN8/CODE39/ITF/CODABAR/CODE93/CODE128

2D

PDF417, QR code,Datamatrix(301)

Detection

Sensors

Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional)





Power Supply

Input

AC 100V-240V 50/60HZ

Output

DC 24V/2.5A













Paper

Paper Type

Thermal Receipt Paper

Paper Width

48mm/52mm/56mm/64mm/68mm/76mm/80mm

Paper Thickness

0.06~0.08mm

Roll Dia

Max. Ø 83 mm

Paper Load

Easy paper loading

Paper Cut

Manual tear or Auto-cutter







Physical

Characteristics

Working Condition

0°C~45°C, 10%~80%RH

Storage Condition

-10°C-60°C,10%~90%RH

Dimensions

191(D)x146(W)x12.9(H)mm

Net weight

2.08kg

Gross weight

2.28kg





Reliability

Printing head

150KM

cutter

1.5million

Accessories



data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option)





Packing

Individual box

Dimension    25X20X16cm(LXWXH

1unit/carton

Master carton

Dimension    63X27X35cm(LXWXH

6units/carton







OS

Emulation

ESC/POS

Driver

Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS

SDK

Android, IOS
