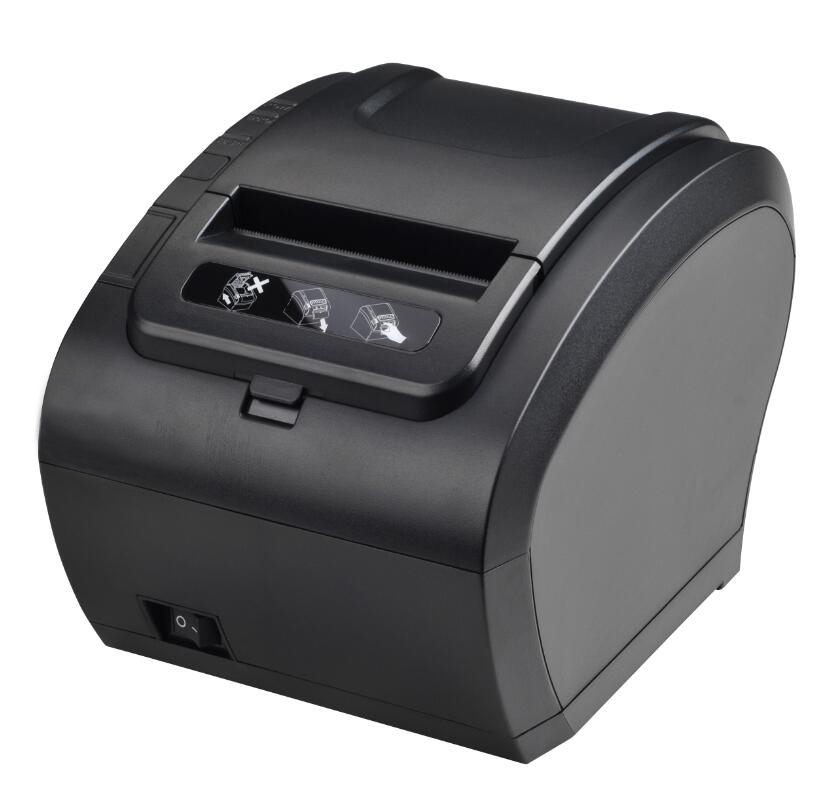

Economic 80mm thermal receipt printer
Product Name:
Economic 80mm thermal receipt printer
:
:
:


Product Description



   Main Features:

Main features:

Fast printing of text and images

Long lasting auto-cutter up to 1.5million cuts

Friendly utilities,virtual usb or usb hid setting by utilities

Support 8 kinds of different paper width(Option)

   • Support wall mounting

Model



NW-307













Printing

Print Method

Direct Thermal

Print Speed

200mm/s,230mm/s,260m

Resolution

576dots/line or 572dots/line

Printing Width

72mm

Paper separator(option)

48mm/52mm/56mm/64mm/68mm/76mm/80mm

Interface

USB/USB+LAN/RS232C+USB+Lan/ RS232C+USB+Lan+Bluetooth/ RS232C+USB+Lan+WiFi



Kitchen function

Power,Paper,Erro

Support

LED light with beeper

Without

Hanging device

Equipped





Memory

Input buffer

256kbytes



NV Flash



256kbytes



Fonts

Font A

12x24

Font B

9x17







Fonts

Chinese

GB18030,BIG5 24x24dots

Japanese/Korea

Support



User-defined



Support





Barcode



1D

UPC-A/UPC-E/JAN13EAN13/JAN8EAN8/CODE39/ITF/CODABAR/CODE93/CODE128



2D



QR code



Detection



Sensors



Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional)





Power Supply

Input

AC 100V-240V 50/60HZ

Output

DC 24V/2.5A













Paper

Paper Type

Thermal Receipt Paper

Paper Width

48mm/52mm/56mm/64mm/68mm/76mm/80mm

Paper Thickness

0.06~0.08mm

Roll Dia

Max. Ø 83 mm

Paper Load

Easy paper loading

Paper Cut

Manual tear or Auto-cutter









Physical

Characteristics

Working Condition

0°C~45°C, 10%~80%RH

Storage Condition

-10°C-60°C,10%~90%RH

Dimensions

191(D)x146(W)x12.9(H)mm



Net weight



1.94kg



Gross weight



2.14kg



Reliability

Printing head

150KM

cutter

1.5million



Accessories





data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option)









Packing



Individual box

Dimension

29X17X17cm(LxWxH



1unit/carton





Master carton



Dimension

62X36X52cm(LxWxH





12units/carton







OS

Emulation

ESC/POS



Driver



Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS

SDK

Android, IOS
